DESCRIPTION

說  明

·Strand, tinned or bare conductor,26-10AWG

·導體使用絞線26-10AWG裸銅或鍍錫銅

·PVC insulation

·聚氯乙烯絕緣

·Rated temperature:105℃

·額定溫度:105℃

·Rated voltage:600volts

·額定電壓:600伏

·Uniform thickness of wire to ensure easy stripping and cutting.

·使用標準厚度，易剝，切斷容易

·Passes UL VW-1 vertical flame test

·通過UL VW-1 垂直燃燒測試

·Passes UL/C(UL) approval

·通過UL/C(UL)認證

·Refer to standard UL 758

·參考標準UL 758

APPLICATIONS

應   用

·For internal wiring of electronic and equipment

·一般電子設備,電器設備,電纜芯線

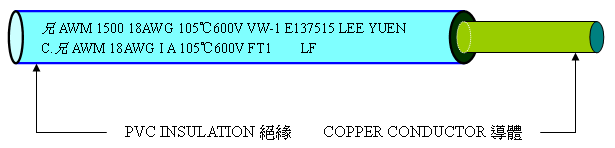

CONSTRUCTION

構   造

UL STYLE

&

C(UL) TYPE

Size

線號

Conductor Construction

導體結構

Stranding

Diameter

絞合直徑

Insulation Thickness

絕緣厚度

Overall Diameter

完成外徑

Standard put-up

標準長度

英制

公制

AWG

No./mm

mm

mm

mm

Feet/coil

Meter/coil

UL1500

26

7/0.16

0.49

0.79

2.05

2000

610

24

11/0.16

0.61

0.79

2.20

2000

610

22

17/0.16

0.76

0.79

2.35

2000

610

20

26/0.16

0.94

0.79

2.50

2000

610

18

41/0.16

1.18

0.79

2.75

2000

610

16

26/0.254

1.49

0.79

3.05

2000

610

14

41/0.254

1.89

0.79

3.45

1000

305

12

65/0.254

2.37

0.79

3.95

1000

305

10

104/0.254

2.99

0.79

4.55

1000

305
