DESCRIPTION

說  明

·Strand, tinned or bare conductor,30-16AWG

·導體使用絞線30-16 AWG裸銅或鍍錫銅

·Color-coded PVC insulation

·聚氯乙烯絕緣

·Rated temperature:80℃

·額定溫度:80℃

·Rated voltage:300volts

·額定電壓:300伏

·Uniform thickness of wire to ensure easy stripping and cutting.

·使用標準厚度，易剝，切斷容易

·Passes UL VW-1 vertical flame test

·通過UL VW-1 垂直燃燒測試

·Passes UL/C(UL) approval

·通過UL/C(UL)認證

·Refer to standard UL 758

·參考標準UL 758

Application

應  用

·Internal wiring of Audio/Video Equipment and Appliances

·影音儀器及電器安裝用電線

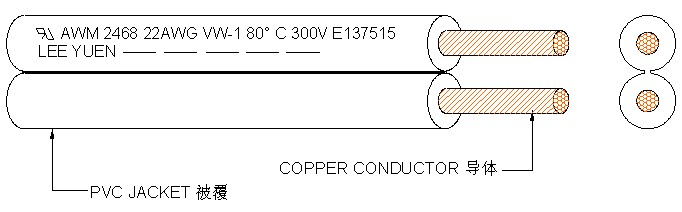

Structure

構   造

UL STYLE

&

C(UL) TYPE

Size

線號

Conductor Construction

導體結構

Stranding Diameter

絞合直徑

Insulation Thickness

絕緣厚度

Overall Diameter

完成外徑

Standard put-up

標準長度

英制

公制

AWG

No./mm

mm

mm

mm

Feet/coil

Meter/coil

UL2468

30X2

7/0.10

0.31

0.40

1.15X2.30

2000

610

28X2

7/0.12

0.37

0.40

1.25X2.50

2000

610

26X2

7/0.16

0.49

0.40

1.35X2.70

2000

610

24X2

11/0.16

0.61

0.40

1.50X3.00

2000

610

22X2

17/0.16

0.76

0.40

1.75X3.50

2000

610

20X2

26/0.16

0.94

0.40

2.00X4.00

2000

610

18X2

41/0.16

1.18

0.40

2.20X4.40

2000

610

16X2

26/0.254

1.49

0.40

2.40X4.80

2000

610
